CineBack® V2 for Fujifilm X-H2S, X-H2, X-T4 and X-T5

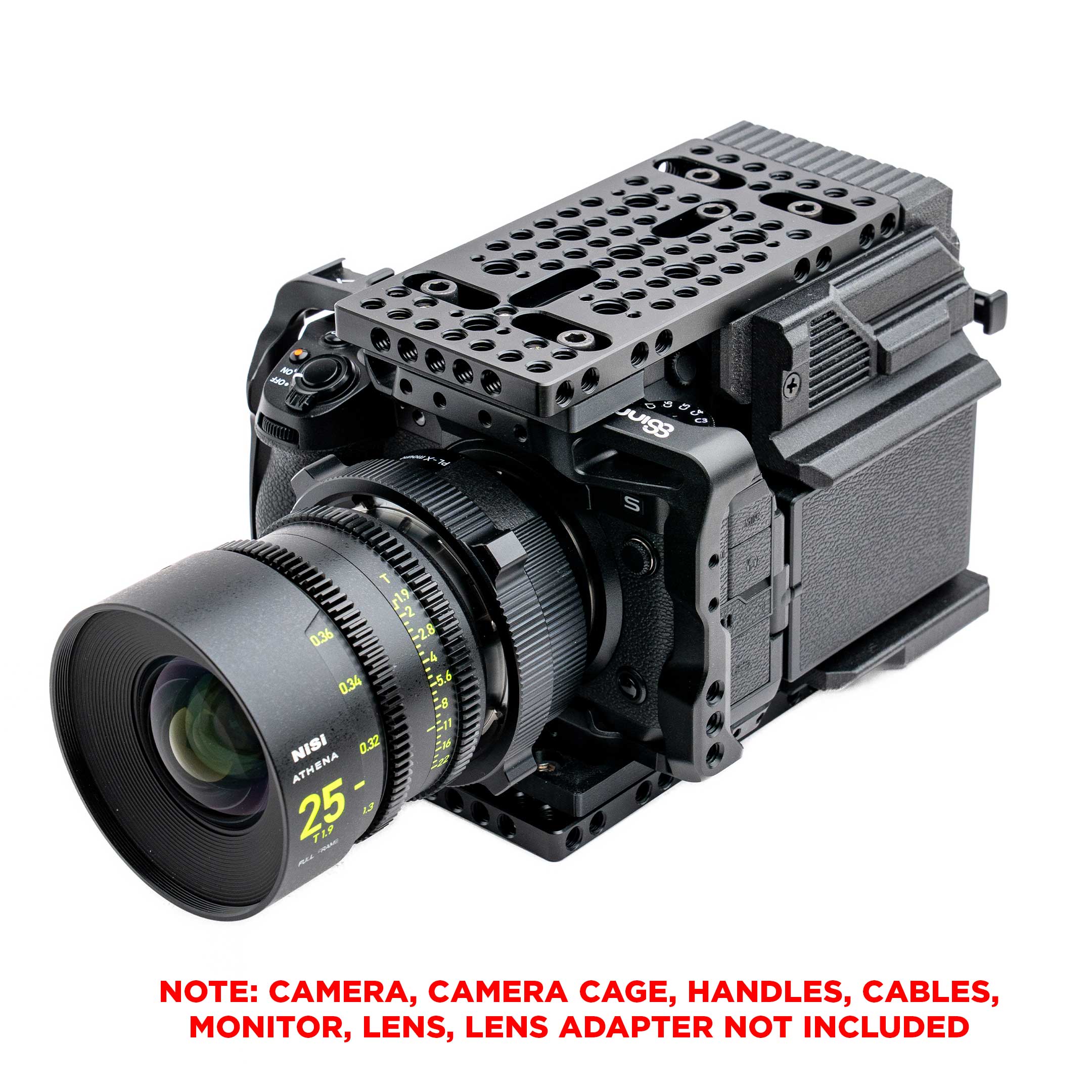

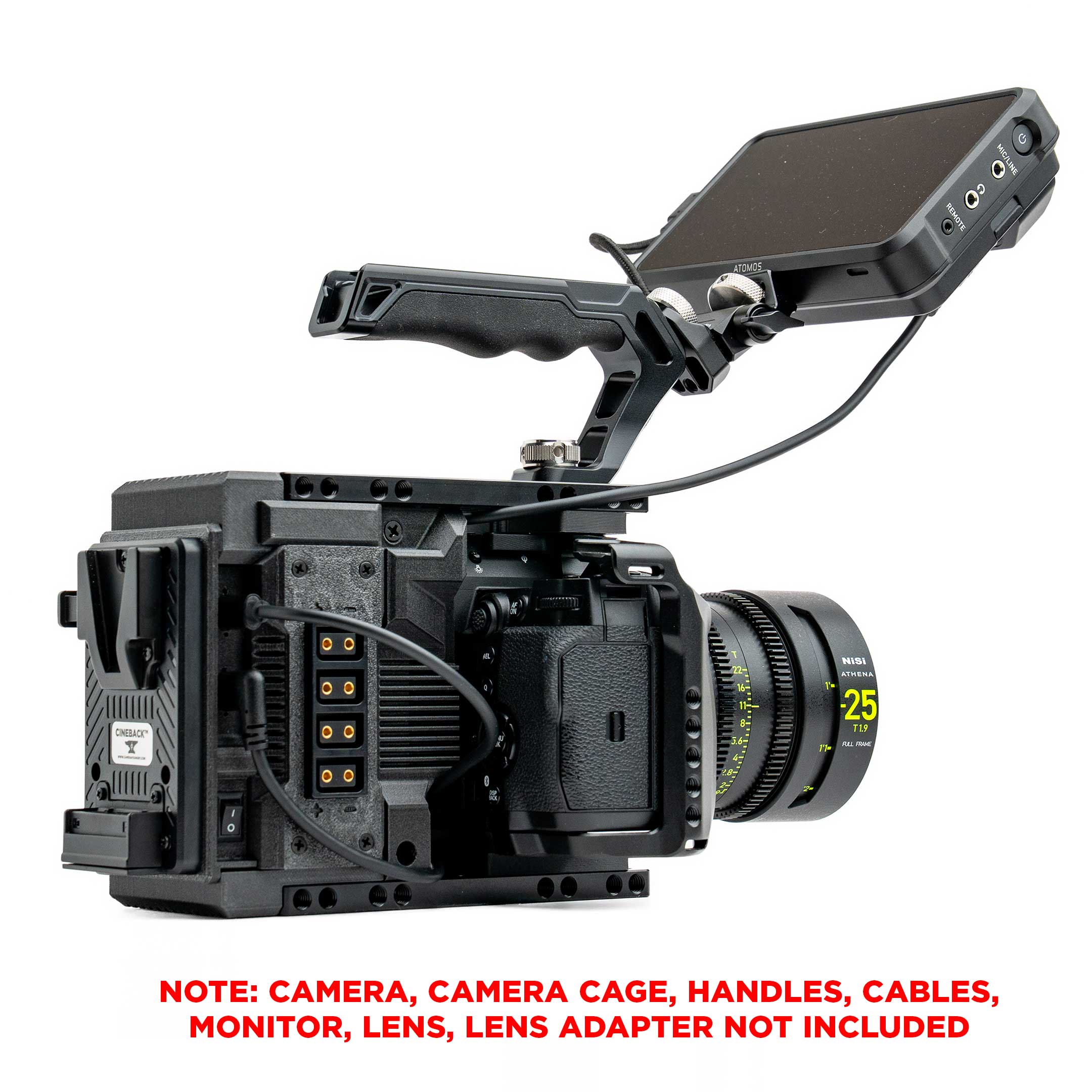

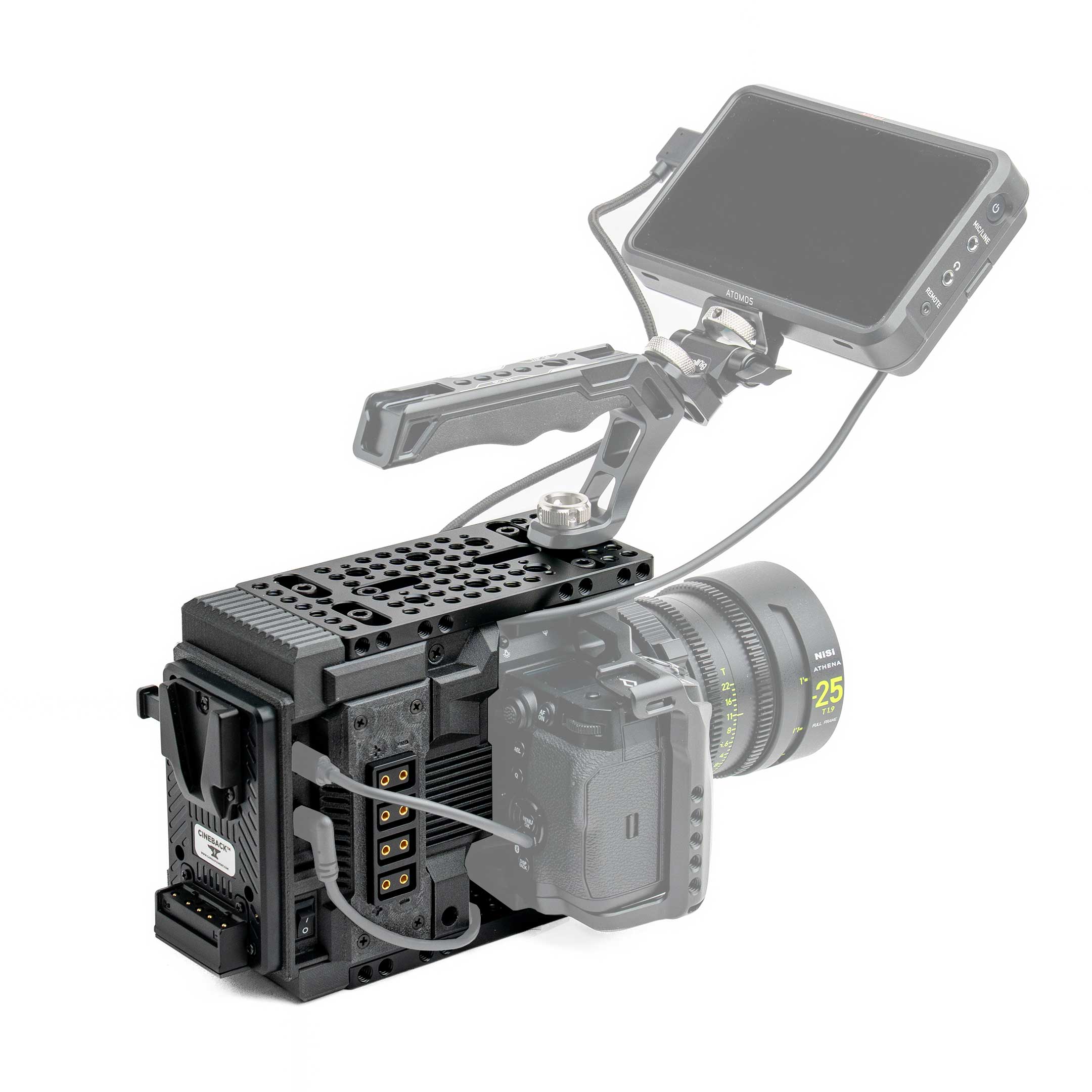

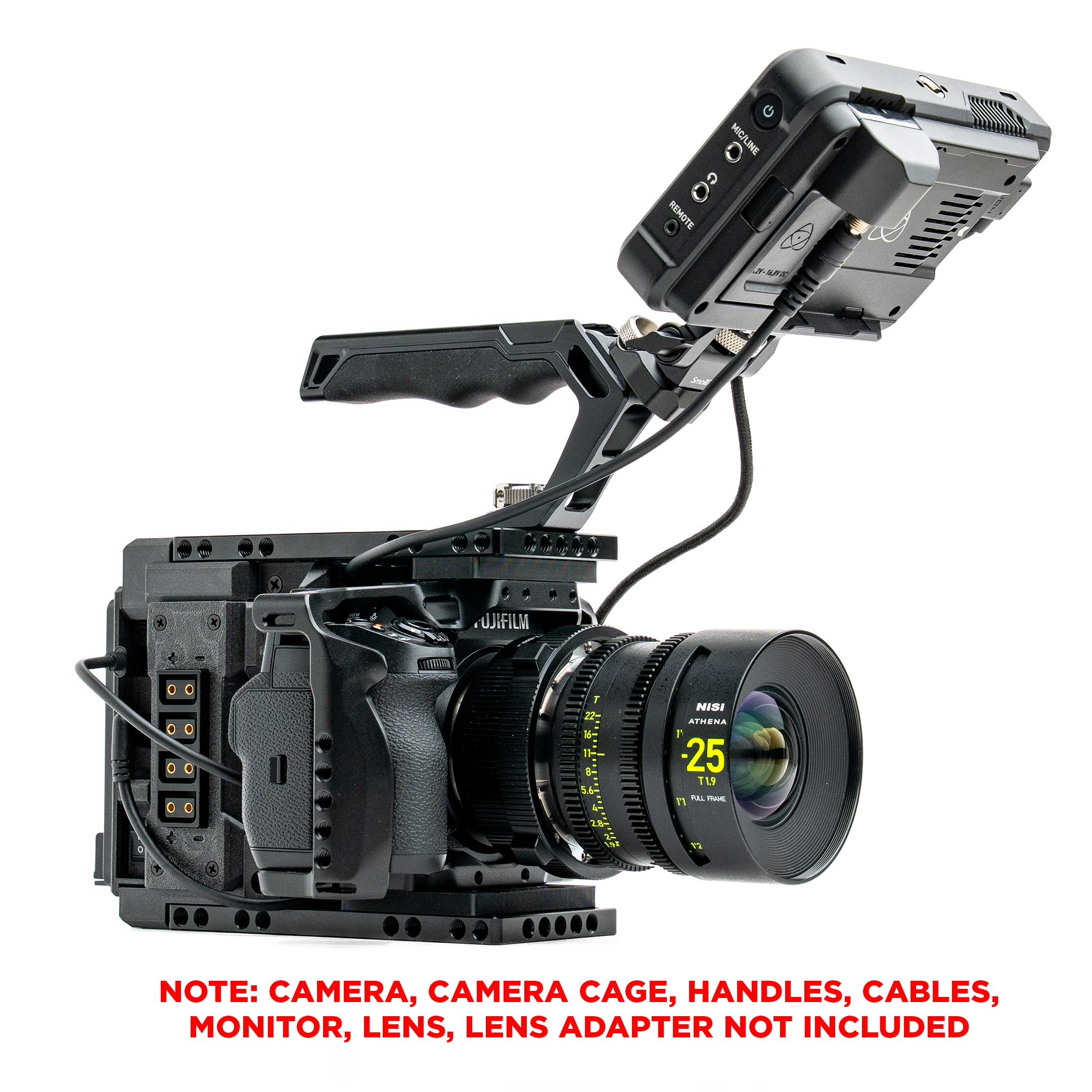

Turn your Fujifilm X-H2s, X-H2, X-T4 or X-T5 into a cinema camera with CineBack®!

CineBack® is a camera rig that bolts onto the back of your camera giving you tons of mounting options, power choices and other features that you can learn about in the video and description below.

Just add one of the cages mentioned below and you have a cinema camera! Works with 6 Popular Cages from Wooden Camera, SmallRig, Tilta and 8Sinn!

CineBack® V2 Features

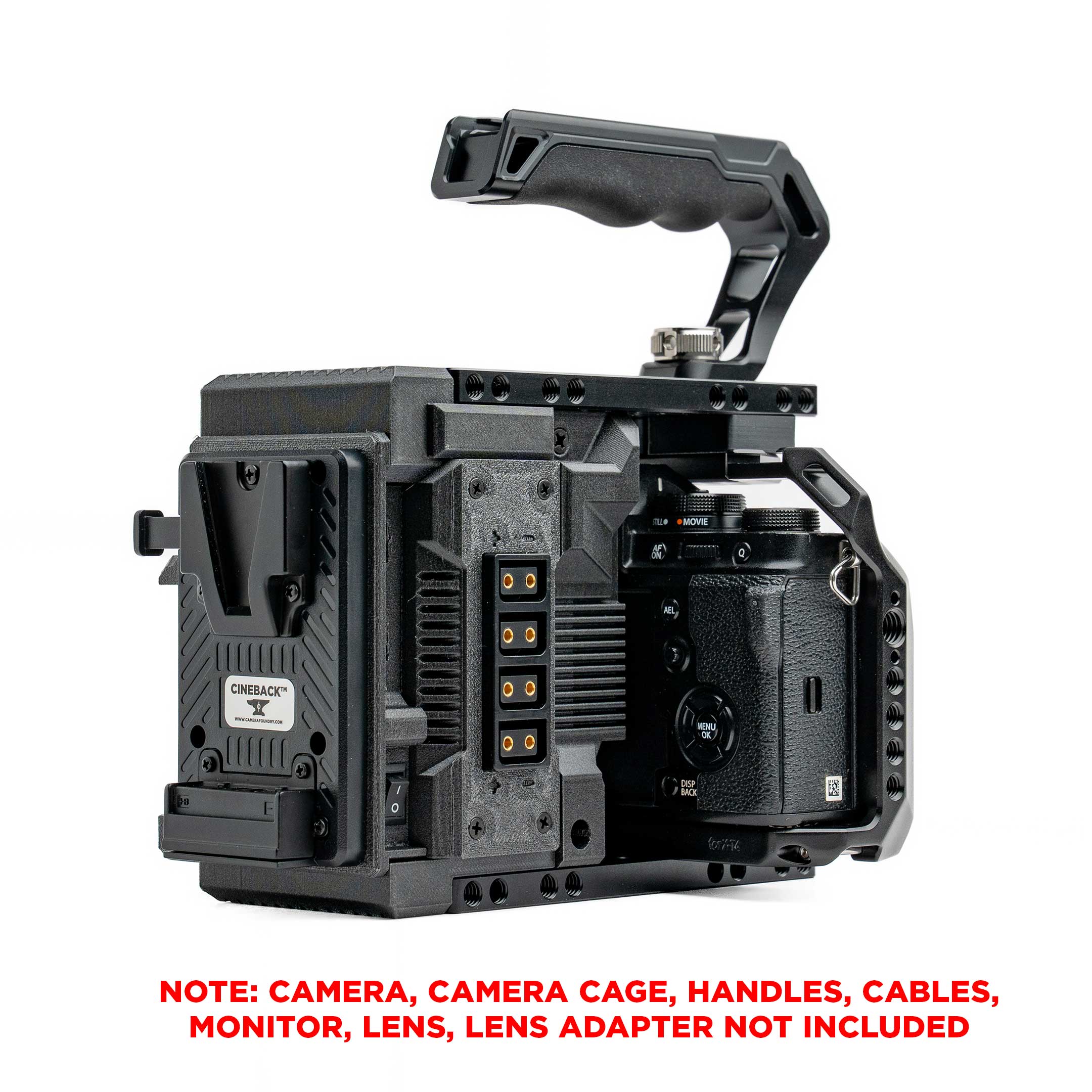

• V-Mount or Gold Mount battery plate for longer run time
• Dual USB-C Power Delivery power jacks for powering your camera and other devices (right angle USB-C cables here) NEW WITH V2!
• Compatible with Fujifilm Cooling Fan

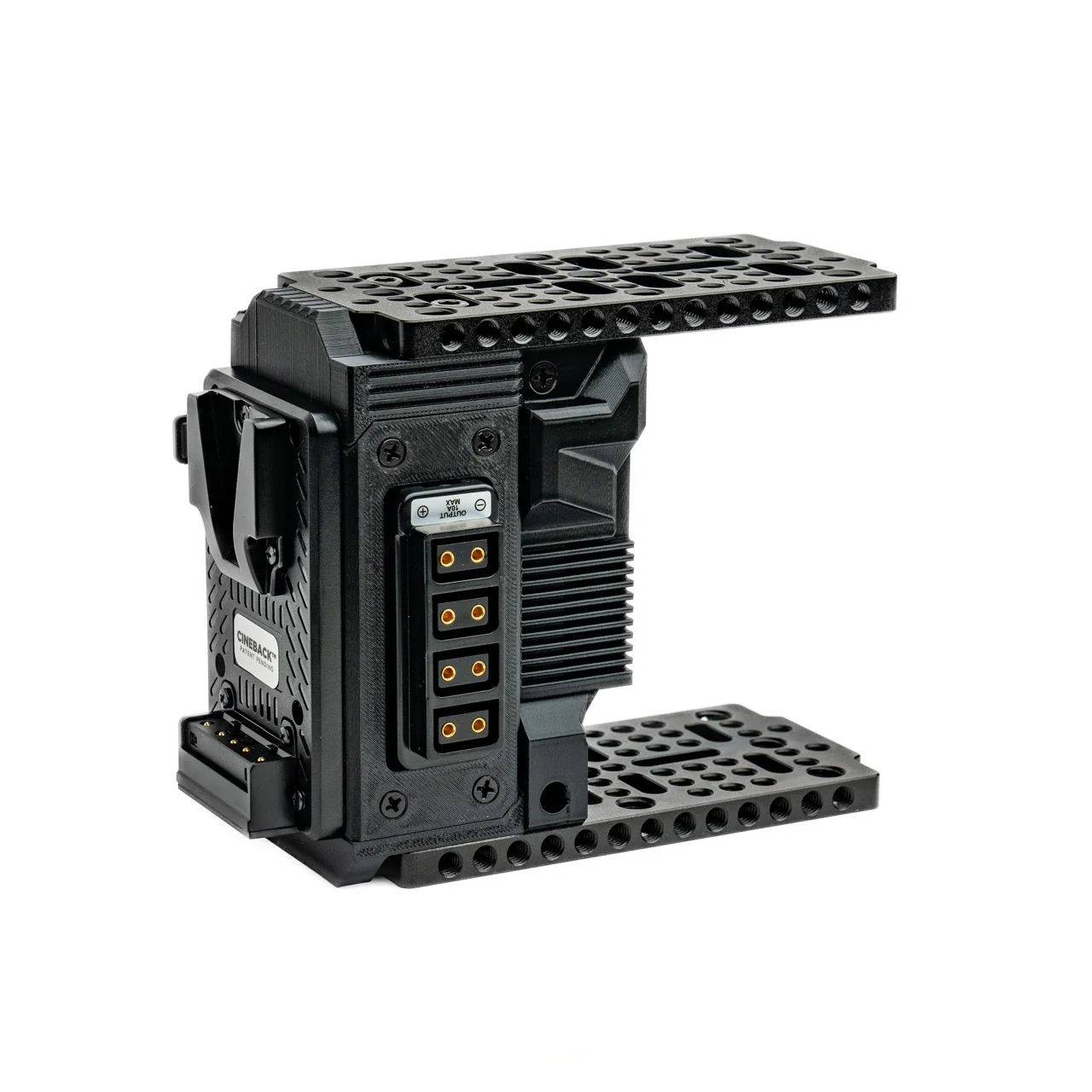

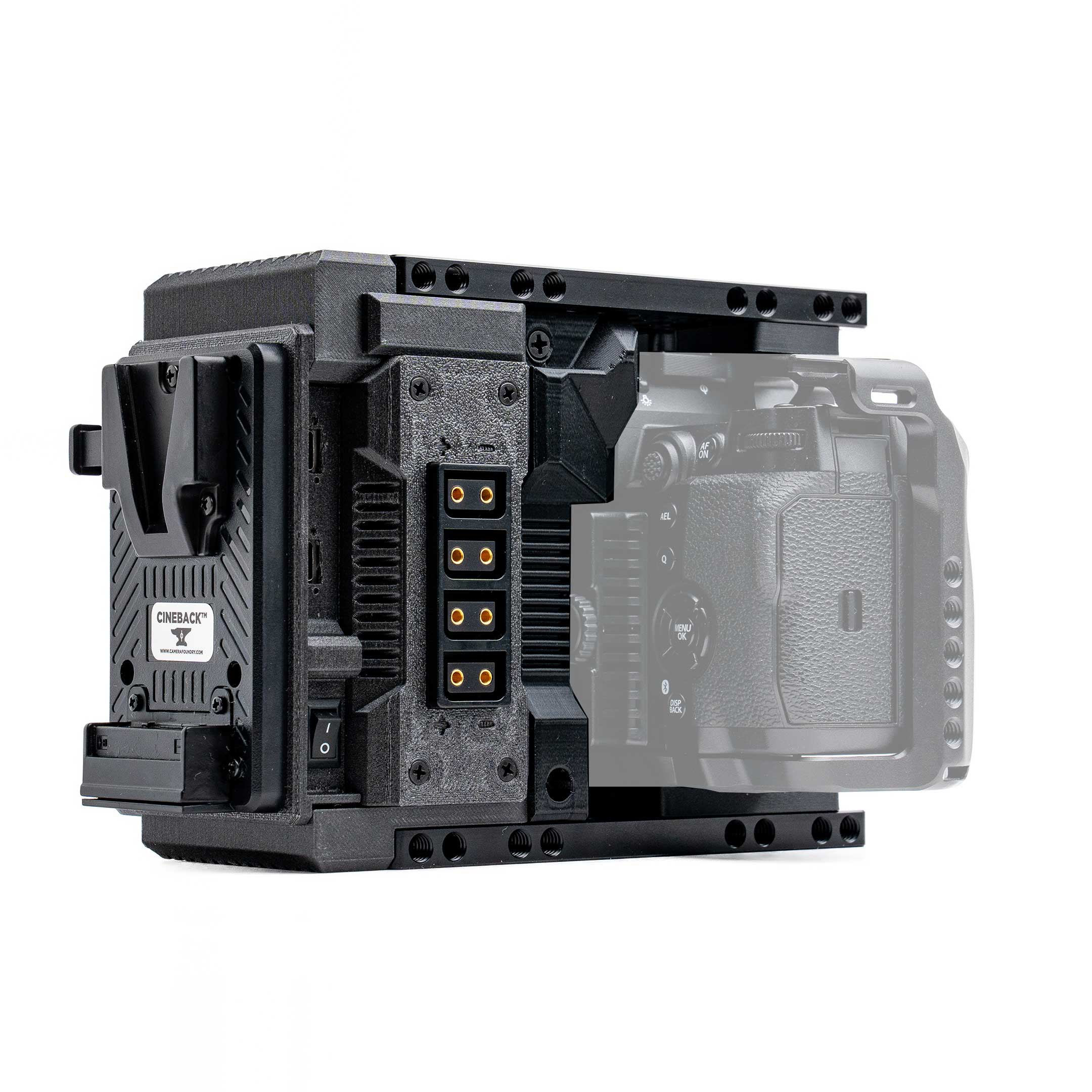

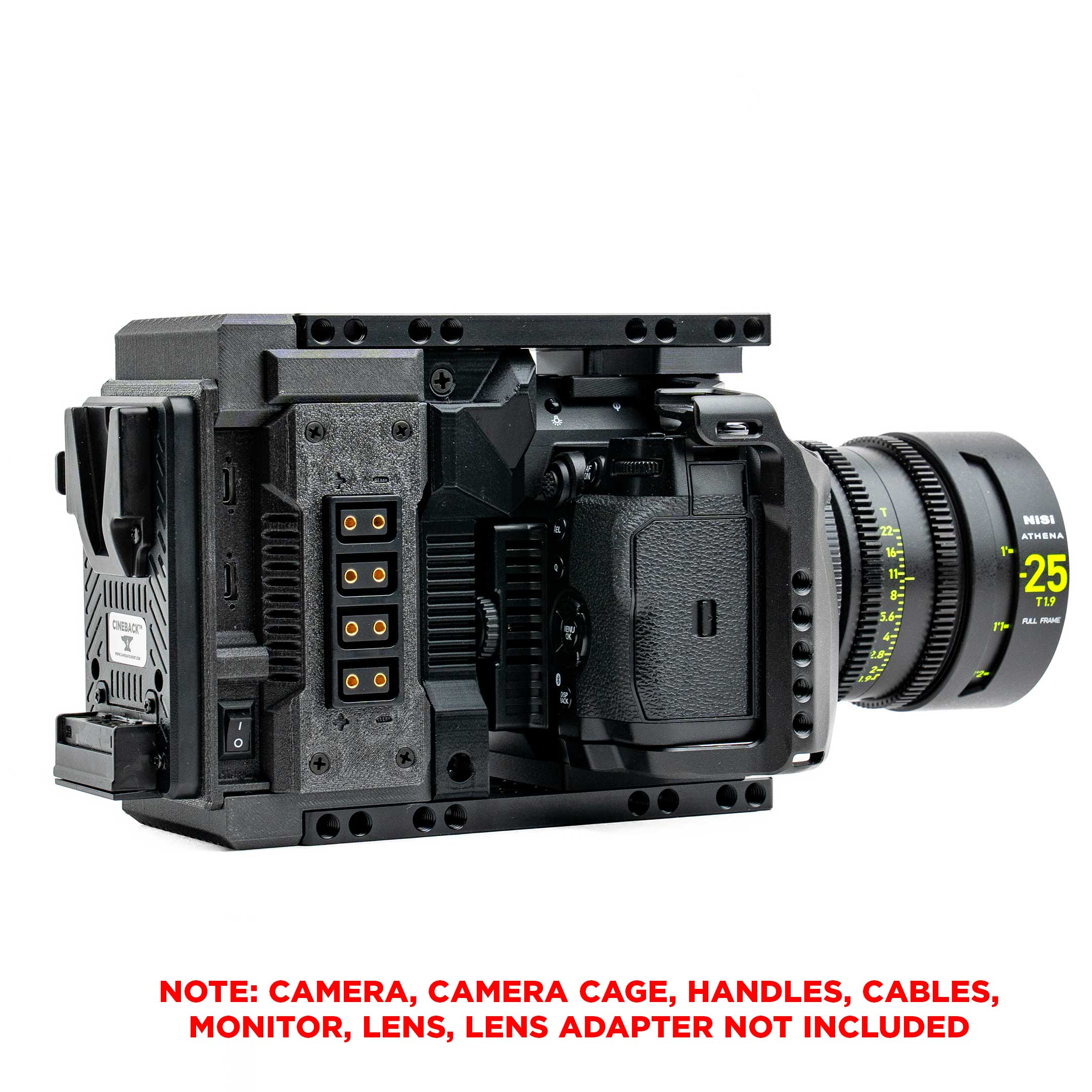

• Rotating D-Tap splitter with 4 outputs to power your camera and other accessories NEW WITH V2!
• Compatible with the CineBack® Quick Release Module NEW WITH V2!
• Compatible with 8+ cages from SmallRig, Tilta, 8Sinn and Wooden Camera NEW WITH V2!
• Power switch to completely cut power so there is no battery drain

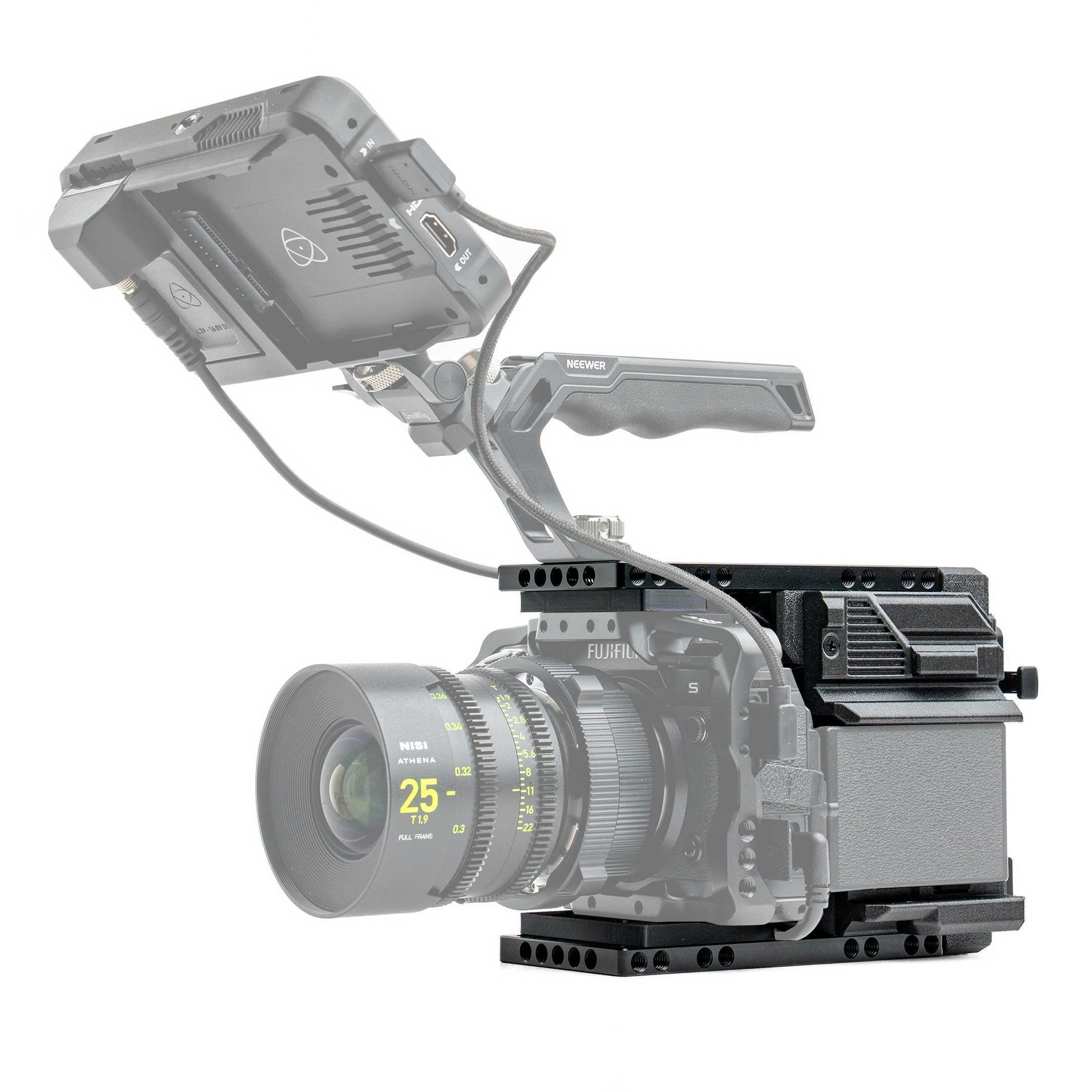

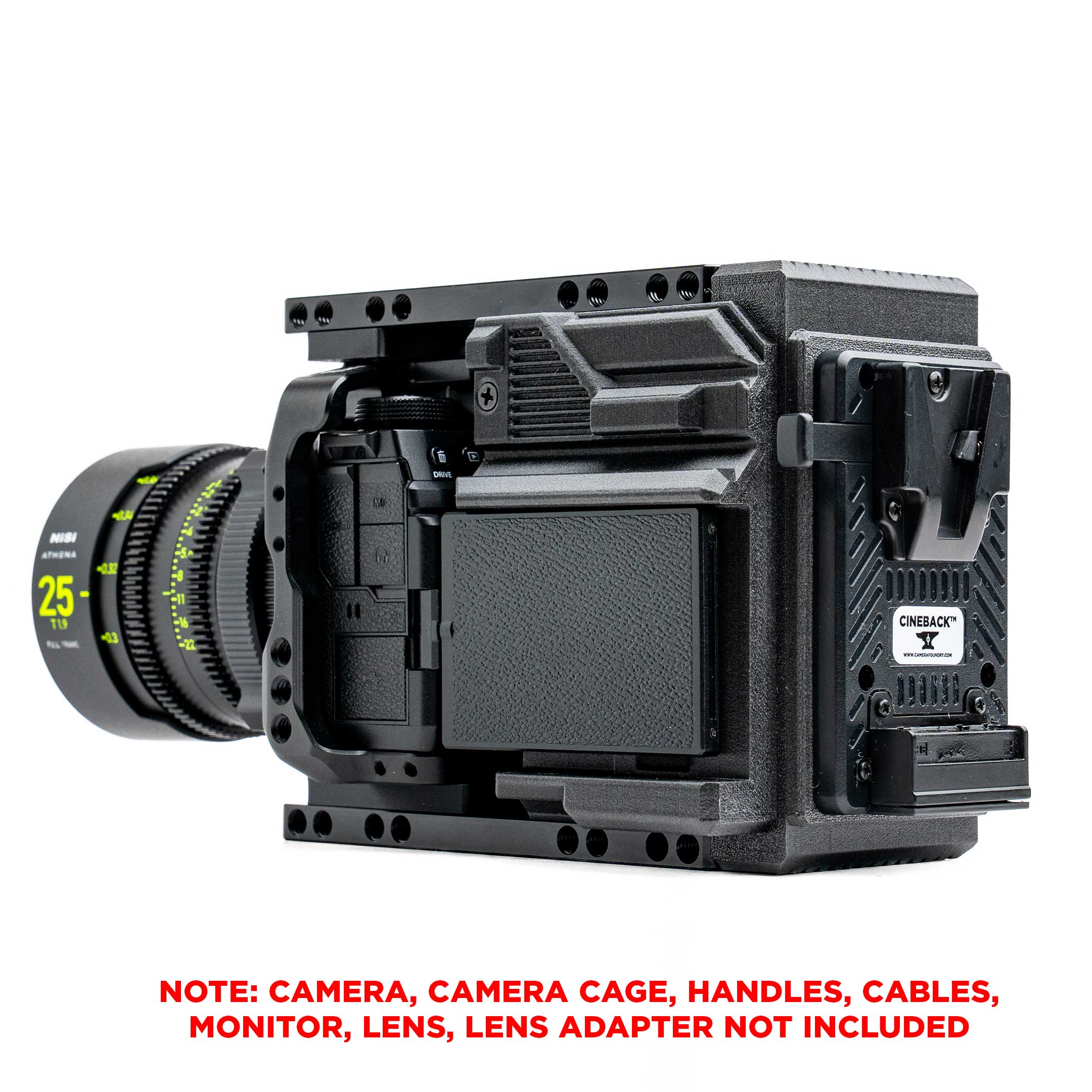

• Screen side mount allowing you to use your camera screen in cine mode, open or closed

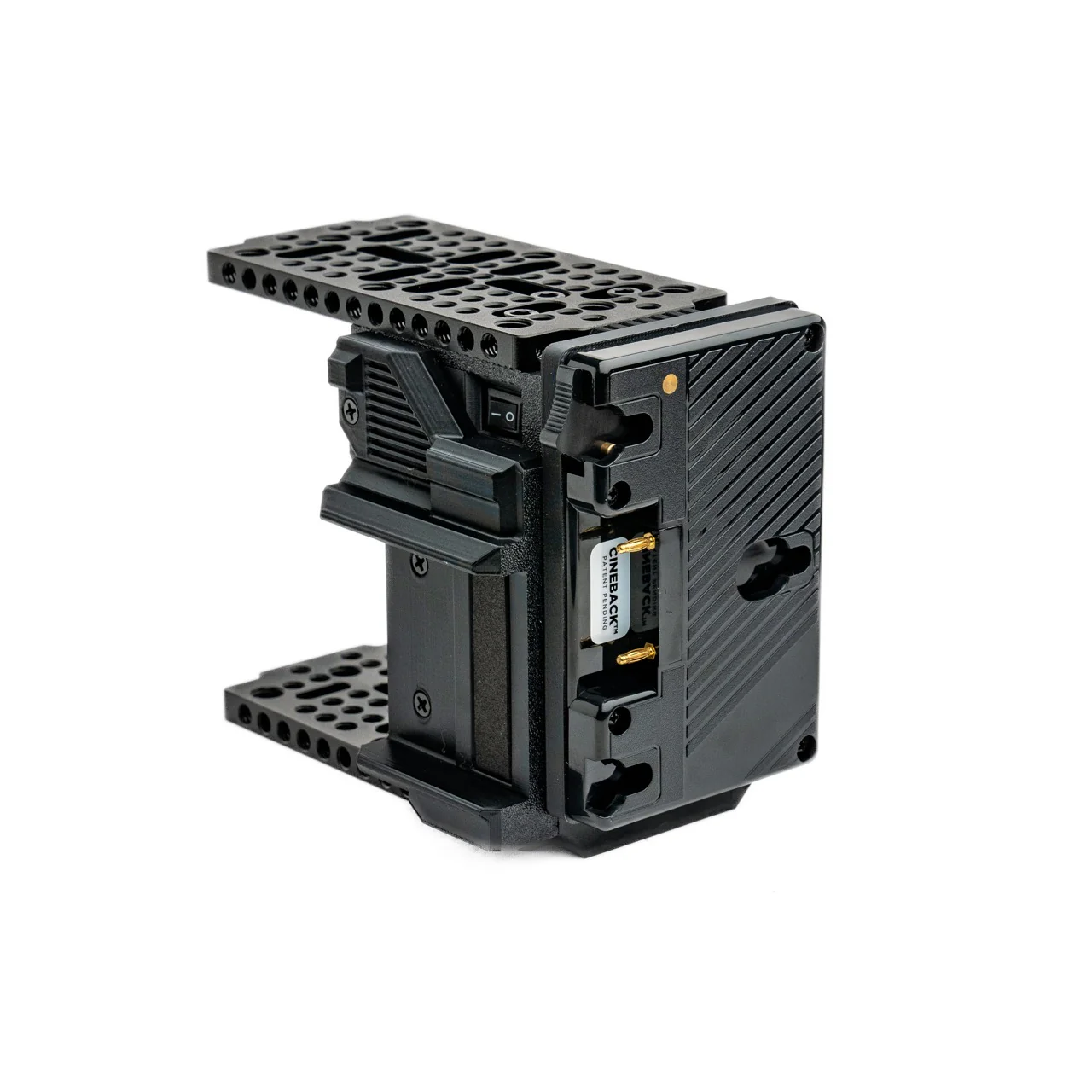

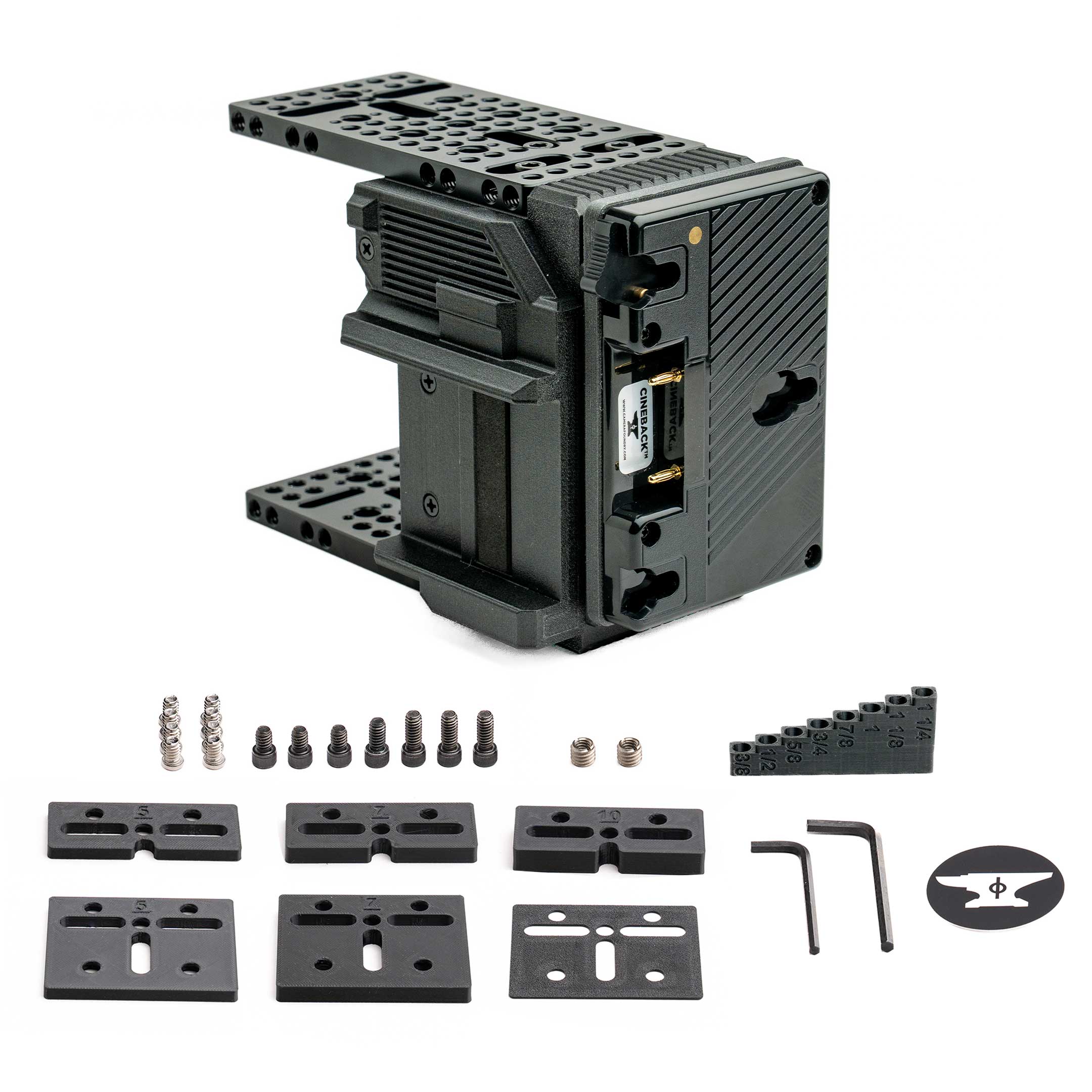

• New top and bottom cheese plates for mounting accessories and other rigging gear NEW WITH V2!
• Cable management compartment and with cable routing built in.
• Modular with future accessories possible (see all CineBack® accessories here).

Required Gear

To get this version of CineBack® working, you will need one of the 6 supported camera cages:

X-H2s/X-H2 Cages:

• Tilta Full Camera Cage for FUJIFILM X-H2S/X-H2 (Model TA-T36-FCC-B)
• SmallRig Camera Cage for FUJIFILM X-H2S/X-H2 (Model 3934)
• 8Sinn Cage for FUJIFILM X-H2 and X-H2S (8-FX-H2S)
• Wooden Camera Full Camera Cage for FUJIFILM X-H2S (Model A00053)

X-T4 Cage:

• SmallRig Camera Cage for FUJIFILM X-T4 (Model CCF2808)

X-T5 Cage:

• SmallRigCamera Cage for Fujifilm XT5 (Model 4135)
  • NOTE! This camera does not have a flip out screen so the screen will be blocked by CineBack. Use HDMI Info display to see your settings on an external monitor.

Specifications

• USB-C Jack (Each)
• Output: Automatically adjusts between 3.3V~12V when connected to USB-C PD (Power Delivery) compatible devices (input voltage should be higher than output voltage). 65W max (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)
• Output over-current protection
• Short-circuit protection
• Over-temperature protection
• D-Tap 4x Splitter
• Output: Whatever voltage you connect to the V-Mount or Gold Mount. Often 14.8v
• 10A Max output current.
• Weight: 30.3oz (no camera, battery or camera cage)



---

Discontinued V1 Instructions:

Required Gear

To get this version of CineBack® working, you will need one of the 4 supported camera cages:

• Tilta Full Camera Cage for FUJIFILM X-H2S/X-H2 (Model TA-T36-FCC-B)
• SmallRig Camera Cage for FUJIFILM X-H2S/X-H2 (Model 3934)
• 8Sinn Cage for FUJIFILM X-H2 and X-H2S (8-FX-H2S)
• Wooden Camera Full Camera Cage for FUJIFILM X-H2S (Model A00053)


Optional Accessories

D-Tap to Power Delivery Kit for CineBack®. This adapter kit converts the D-Tap voltage from CineBack® to a camera friendly USB-C Power Delivery voltage for long run times. Includes a USB-C Right Angle cable that is easy to rig up with CineBack®

The Fujifilm Cooling Fan is also supported with this version of Cineback®
